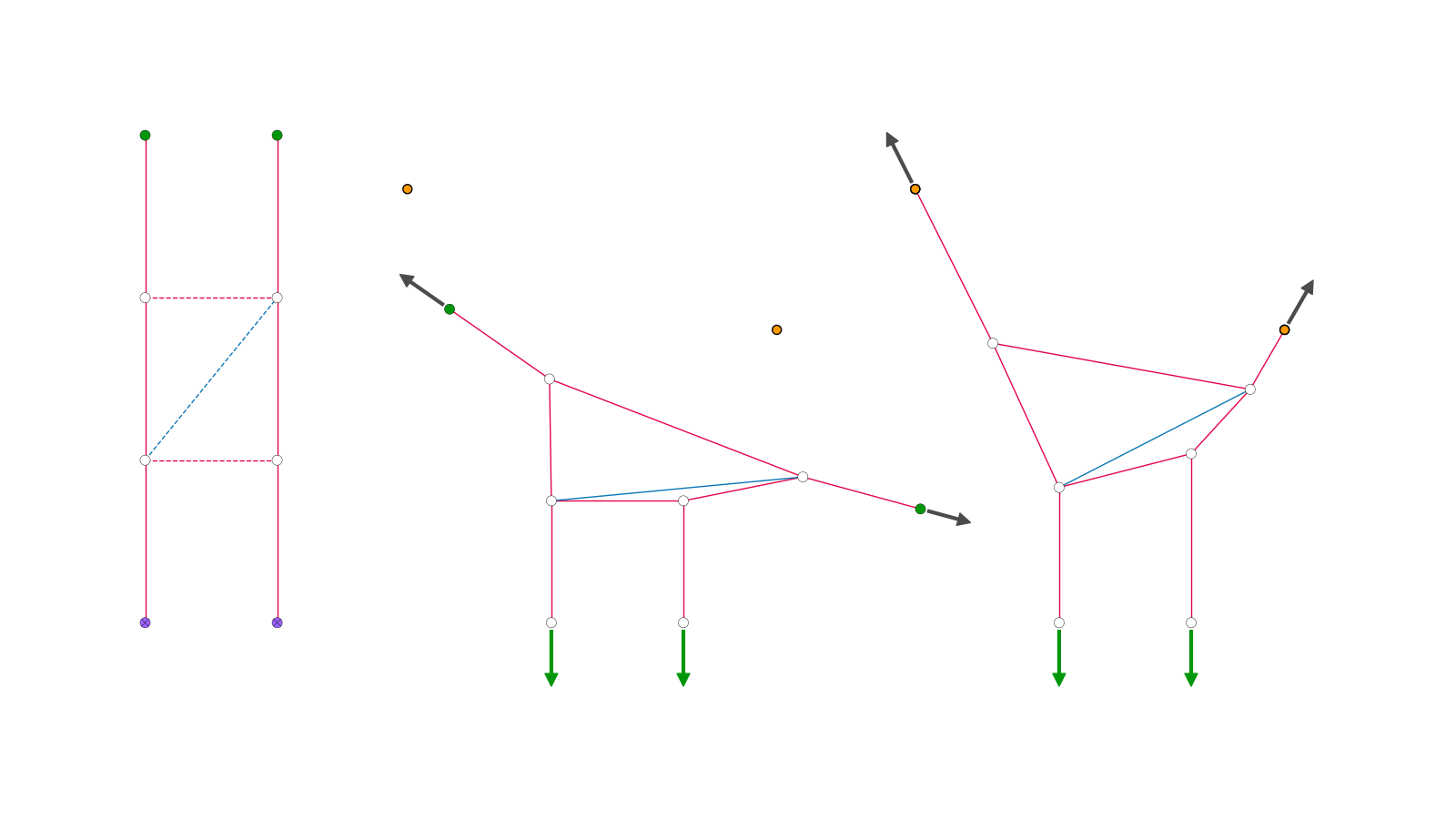

03. Bridge Optimization in 2D

import os

from compas.geometry import Point
from compas.geometry import Translation

from compas_cem.diagrams import TopologyDiagram
from compas_cem.equilibrium import static_equilibrium
from compas_cem.loads import NodeLoad
from compas_cem.optimization import DeviationEdgeParameter
from compas_cem.optimization import Optimizer
from compas_cem.optimization import PointGoal
from compas_cem.optimization import TrailEdgeParameter
from compas_cem.plotters import Plotter
from compas_cem.supports import NodeSupport

# ------------------------------------------------------------------------------
# Data
# ------------------------------------------------------------------------------

HERE = os.path.dirname(__file__)
IN = os.path.abspath(os.path.join(HERE, "03_bridge_2d.json"))

# ------------------------------------------------------------------------------
# Load topology diagram from JSON
# ------------------------------------------------------------------------------

topology = TopologyDiagram.from_json(IN)

# ------------------------------------------------------------------------------
# Add supports
# ------------------------------------------------------------------------------

topology.add_support(NodeSupport(1))
topology.add_support(NodeSupport(5))

# ------------------------------------------------------------------------------
# Apply loads
# ------------------------------------------------------------------------------

topology.add_load(NodeLoad(2, [0.0, -1.0, 0.0]))
topology.add_load(NodeLoad(6, [0.0, -1.0, 0.0]))

# ------------------------------------------------------------------------------
# Generate trails
# ------------------------------------------------------------------------------

topology.build_trails()

# ------------------------------------------------------------------------------
# Form-finding
# ------------------------------------------------------------------------------

form = static_equilibrium(topology)

# ------------------------------------------------------------------------------
# Initialize optimizer
# ------------------------------------------------------------------------------

opt = Optimizer()

# ------------------------------------------------------------------------------
# Define goals
# ------------------------------------------------------------------------------

nodes_opt = [1, 5]
target_points = [(-20.67, 42.7, 0.0), (15.7, 28.84, 0.0)]
for node, target_point in zip(nodes_opt, target_points):
    opt.add_goal(PointGoal(node, target_point))

# ------------------------------------------------------------------------------
# Define optimization parameters
# ------------------------------------------------------------------------------

for edge in topology.trail_edges():
    opt.add_parameter(TrailEdgeParameter(edge, bound_low=15.0, bound_up=5.0))

for edge in topology.deviation_edges():
    opt.add_parameter(DeviationEdgeParameter(edge, bound_low=10.0, bound_up=10.0))

# ------------------------------------------------------------------------------
# Optimization
# ------------------------------------------------------------------------------

# optimize
form_opt = opt.solve(
    topology=topology, algorithm="SLSQP", iters=100, eps=1e-6, verbose=True
)

# ------------------------------------------------------------------------------
# Plotter
# ------------------------------------------------------------------------------

plotter = Plotter(figsize=(16, 9))
nodesize = 4.0
loadscale = 6.0

# ------------------------------------------------------------------------------
# Plot topology diagram
# ------------------------------------------------------------------------------

plotter.add(topology, nodesize=nodesize)

# ------------------------------------------------------------------------------
# Plot translated form diagram
# ------------------------------------------------------------------------------

T = Translation.from_vector([40.0, 0.0, 0.0])
plotter.add(form.transformed(T), loadscale=loadscale, nodesize=nodesize)

# add target points
for target_point in target_points:
    x, y, z = target_point
    plotter.add(Point(x, y, z).transformed(T), size=5.0, facecolor=(1.0, 0.6, 0.0))

# ------------------------------------------------------------------------------
# Plot translated optimized form diagram
# ------------------------------------------------------------------------------

T = Translation.from_vector([90.0, 0.0, 0.0])
plotter.add(
    form_opt.transformed(T), loadscale=loadscale, reactionscale=5.0, nodesize=nodesize
)

# add target points
for target_point in target_points:
    x, y, z = target_point
    plotter.add(Point(x, y, z).transformed(T), size=5.0, facecolor=(1.0, 0.6, 0.0))

# ------------------------------------------------------------------------------
# Plot scene
# -------------------------------------------------------------------------------

plotter.zoom_extents()
plotter.show()
