from compas.geometry import Translation
from compas_cem.diagrams import TopologyDiagram
from compas_cem.elements import DeviationEdge
from compas_cem.elements import Node
from compas_cem.elements import TrailEdge
from compas_cem.equilibrium import static_equilibrium
from compas_cem.loads import NodeLoad
from compas_cem.plotters import Plotter
from compas_cem.supports import NodeSupport
# -------------------------------------------------------------------------------
# Data
# -------------------------------------------------------------------------------
points = [
(0, [0.0, 0.0, 0.0]),
(1, [0.0, 1.0, 0.0]),
(2, [0.0, 2.0, 0.0]),
(3, [1.0, 0.0, 0.0]),
(4, [1.0, 1.0, 0.0]),
(5, [1.0, 2.0, 0.0]),
]
trail_edges = [(0, 1), (1, 2), (3, 4), (4, 5)]
deviation_edges = [(1, 4), (2, 5)]
# ------------------------------------------------------------------------------
# Topology Diagram
# ------------------------------------------------------------------------------
topology = TopologyDiagram()
# ------------------------------------------------------------------------------
# Add Nodes
# ------------------------------------------------------------------------------
for key, point in points:
topology.add_node(Node(key, point))
# ------------------------------------------------------------------------------
# Add Trail Edges
# ------------------------------------------------------------------------------
for u, v in trail_edges:
topology.add_edge(TrailEdge(u, v, length=-1.0))
# ------------------------------------------------------------------------------
# Add Deviation Edges
# ------------------------------------------------------------------------------
for u, v in deviation_edges:
topology.add_edge(DeviationEdge(u, v, force=-1.0))
# ------------------------------------------------------------------------------
# Add Indirect Deviation Edges
# ------------------------------------------------------------------------------
topology.add_edge(DeviationEdge(1, 5, force=1.0))
topology.add_edge(DeviationEdge(1, 3, force=1.0))
topology.add_edge(DeviationEdge(2, 4, force=1.0))
# ------------------------------------------------------------------------------
# Set Supports Nodes
# ------------------------------------------------------------------------------
topology.add_support(NodeSupport(0))
topology.add_support(NodeSupport(3))
# ------------------------------------------------------------------------------
# Add Loads
# ------------------------------------------------------------------------------
load = [0.0, -1.0, 0.0]
topology.add_load(NodeLoad(2, load))
topology.add_load(NodeLoad(5, load))
# ------------------------------------------------------------------------------
# Equilibrium of forces
# ------------------------------------------------------------------------------
topology.build_trails()
form = static_equilibrium(topology, eta=1e-6, tmax=100, verbose=True)
# ------------------------------------------------------------------------------
# Plotter
# ------------------------------------------------------------------------------

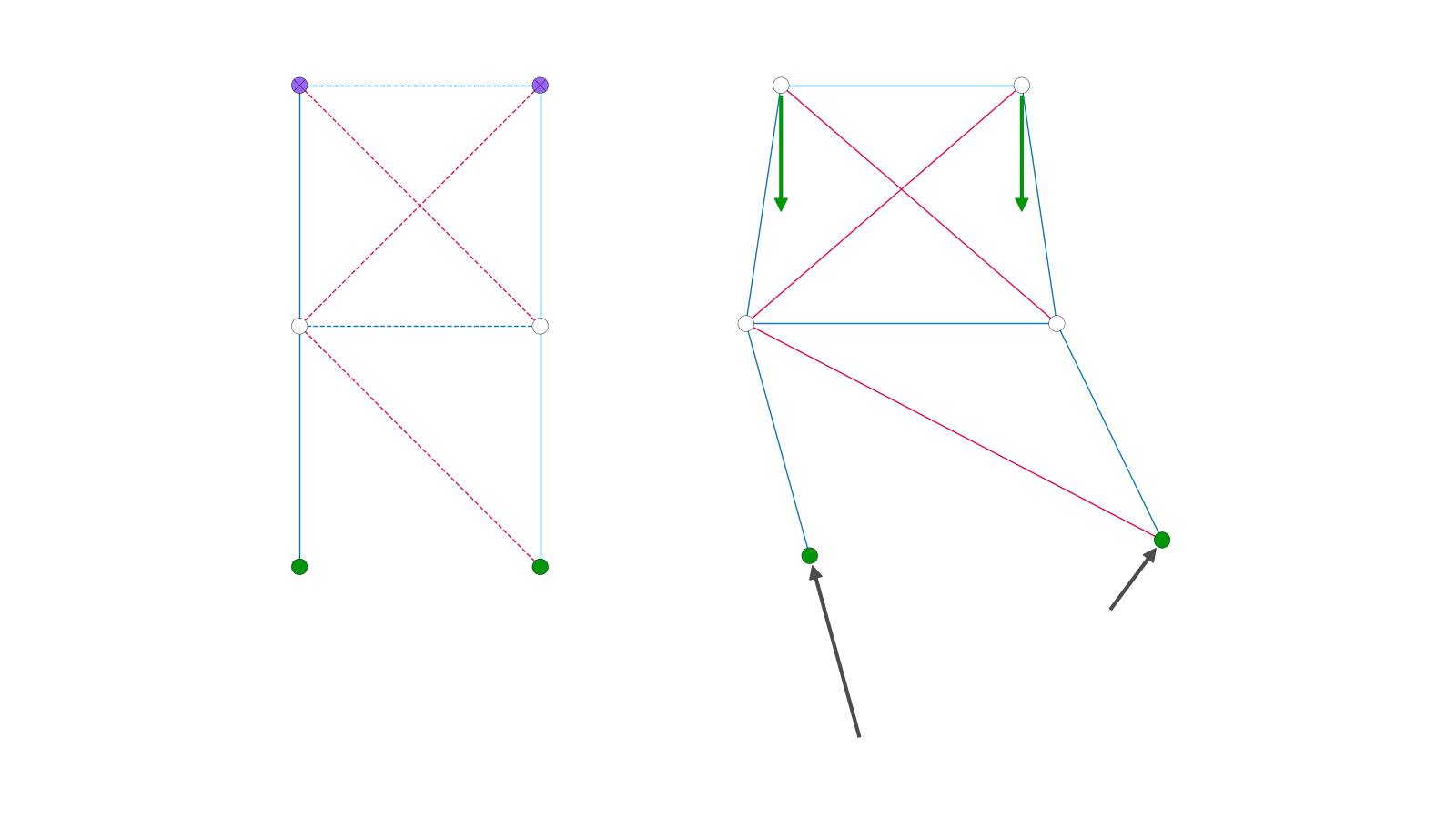

plotter = Plotter()
# ------------------------------------------------------------------------------
# Plot topology diagram
# ------------------------------------------------------------------------------
plotter.add(topology, nodesize=0.2)
# ------------------------------------------------------------------------------
# Plot translated form diagram
# ------------------------------------------------------------------------------
plotter.add(
form.transformed(Translation.from_vector([2.0, 0.0, 0.0])),
nodesize=0.2,
loadscale=0.5,
reactionscale=0.5,
edgetext="force",
show_edgetext=True,
)
# ------------------------------------------------------------------------------
# Plot scene
# -------------------------------------------------------------------------------
plotter.zoom_extents()
plotter.show()
